5 Causes of End Check and How to Avoid Them

Few things are more disappointing for a woodworker than finding cracks at the ends of a beautiful piece of lumber. These splits, called end checks, can ruin the wood's integrity, forcing you to scrap parts of it or limit how you use it in your project.



But understanding how and why end checks happen can save you time, money, and frustration. We’ve learned a lot from working with historic timber frames, and today we’re sharing that knowledge to help you protect your materials.

Here, we’ll look at the most common causes of end checks and give you practical ways to prevent them.

What Are End Checks?

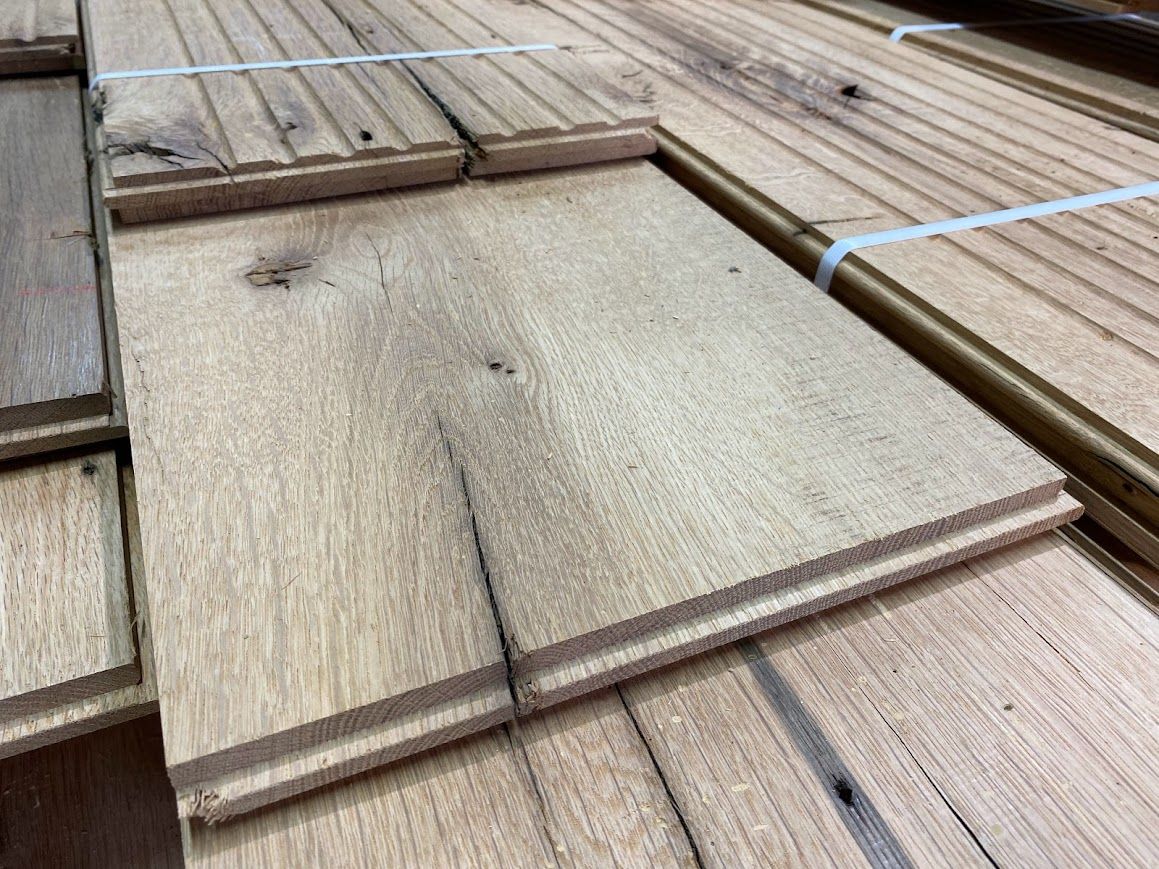

End checks are cracks or splits that form along the grain, usually starting at the ends of a board and running inward. They happen because wood doesn’t shrink or expand evenly across its grain. This uneven movement creates stress, and the wood eventually relieves that stress by splitting.

Think of wood like a bundle of straws bound together. When the wood loses moisture, it shrinks more across the straws than along their length. This creates tension, leading to cracks that follow the grain pattern.

Cause #1: Lumber Dries Too Quickly

The most common cause of end checks is rapid moisture loss. Wood dries faster at its ends than on its sides because the end grain is like an open highway for water to leave. When the ends lose moisture too quickly, they shrink faster than the rest of the board, causing splits to form.

How to Prevent This

• Seal the ends of freshly cut lumber with wax, paint, or a commercial end-grain sealer. This slows down moisture loss at the ends.
• Store wood in a space where the drying process can happen gradually, avoiding overly dry or hot conditions.

Cause #2: Sudden Temperature Changes

Big temperature swings can accelerate end checking, especially when paired with changes in humidity. For example, moving lumber from a cold, damp shed into a warm, heated workshop can cause rapid moisture loss at the ends.

How to Prevent This

• Allow your wood to acclimate slowly when moving it to a different environment.
• If possible, transition the wood through an intermediate space so it can adjust more gradually to the new temperature and humidity levels.

Cause #3: Uneven Airflow

Air circulation can be a double-edged sword when drying wood. While good airflow helps, too much movement over the end grain leads to faster drying at the ends, increasing the risk of checks. On the other hand, poor circulation can result in uneven drying, causing stress within the wood.

How to Prevent This

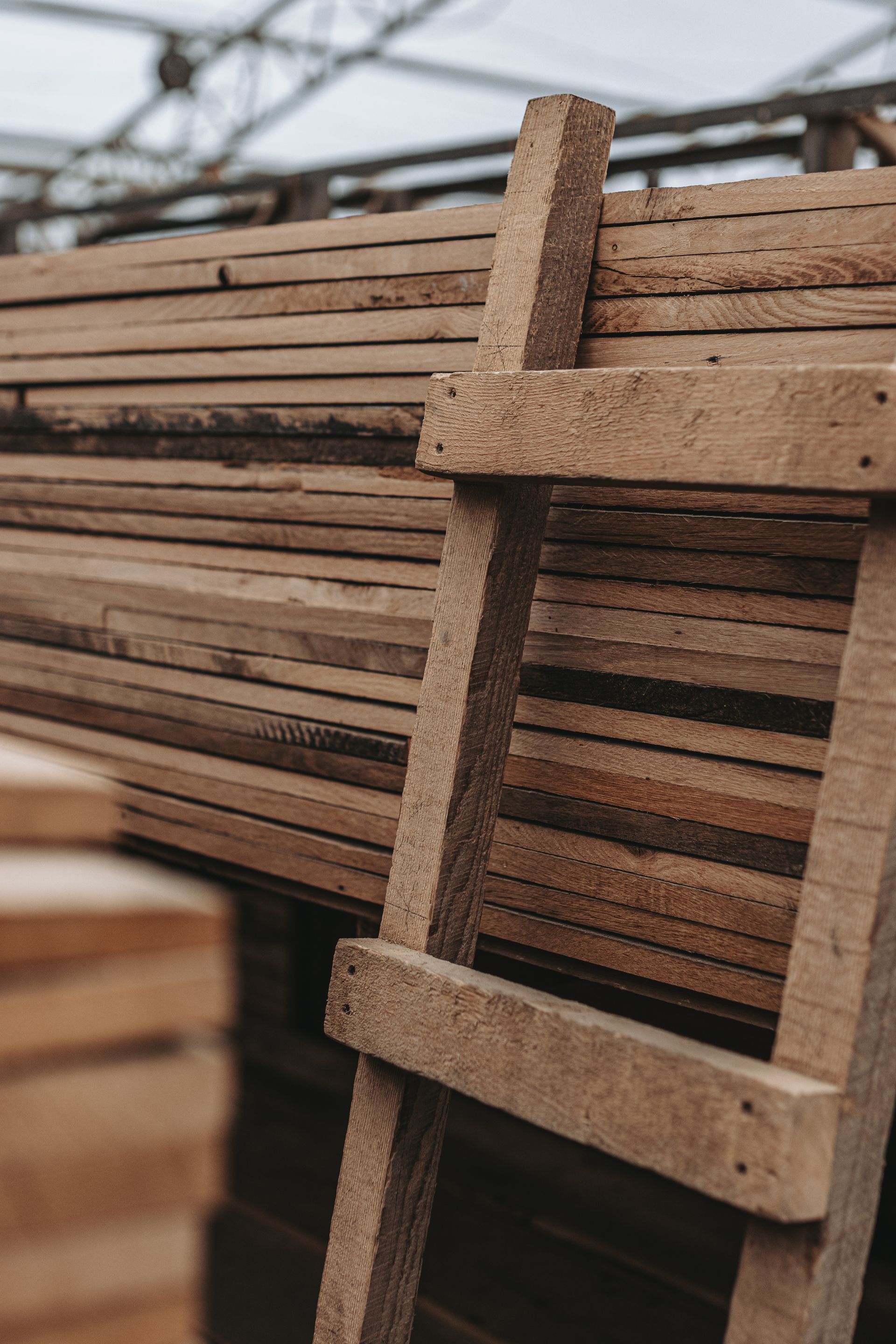

• Stack your wood carefully, using evenly spaced stickers (thin strips of wood) between each board in a pile to allow air to move evenly around all surfaces.
• Avoid placing lumber directly near fans, heating vents, or other sources of strong airflow.

Cause #4: Internal Stress in the Wood

Not all wood is created equal. Some lumber has built-in stresses from the way the tree grew. For instance, trees that developed in tough conditions, such as high winds or poor soil, may produce what’s known as "reaction wood," which is naturally more prone to cracking.

Additionally, how lumber is cut affects its likelihood of checking. Plainsawn boards, which are cut tangentially to the growth rings, are generally more prone to end checks than quartersawn boards, which are cut radially across the rings.

How to Prevent This

• Choose quartersawn lumber for projects where cracks would be a serious problem, as it resists checking better than plainsawn boards.
• Inspect boards for signs of reaction wood, such as bent or irregular grains, before buying.

Cause #5: Certain Wood Species Are More Prone to Checking

Different wood species respond differently to changes in moisture and temperature. For example, porous hardwoods like oak and ash are more prone to end checks than tighter-grained woods like cherry or maple. Some species naturally shrink more than others, making them more likely to crack.

How to Prevent This

• Research the wood species you’re using and learn about its drying characteristics.
• When working with species that are prone to checking, be extra cautious about sealing the ends and controlling the drying process.
• Wherever possible, buy lumber that has been properly kiln-dried from a trusted supplier.

How to Protect Your Wood

Putting in the effort to prevent end checks is much easier than trying to fix them later. Here are the most effective strategies we’ve learned:

Seal End Grain Immediately

Don’t wait! Apply a proper end sealer, wax, or paint to freshly cut boards as soon as possible.

Control Climate

Store your lumber in environments with stable temperature and humidity. If you need to move it, give it time to adjust gradually to avoid stress.

Plan Your Build with Wood Movement in Mind

Design woodworking projects to allow for natural wood movement. This keeps minor checks from becoming a big problem.

Buy High-Quality Lumber

If you can, purchase your wood from suppliers that properly dry and store their materials. Good suppliers reduce the chances of major issues like checking.

What If End Checks Happen?

Even with careful prevention, some small end checks can still form, especially in certain wood species or during long drying periods. If you catch them early, there are ways to minimize the damage:

• Apply more end sealer or move the wood to a more stable environment to slow down further drying.
• For larger cracks, you may need to trim the affected section off the board to prevent them from spreading.

Remember, some checking is normal and doesn’t always mean the wood is unusable. The goal isn’t perfection but rather managing cracks so they don’t impact your finished project or waste materials.

Final Thoughts

End checks don’t have to ruin your woodworking projects. By understanding why these cracks happen and taking proactive steps to prevent them, you can save your materials and achieve better results. Whether you’re working with freshly cut wood or centuries-old timber, proper care and planning go a long way.
