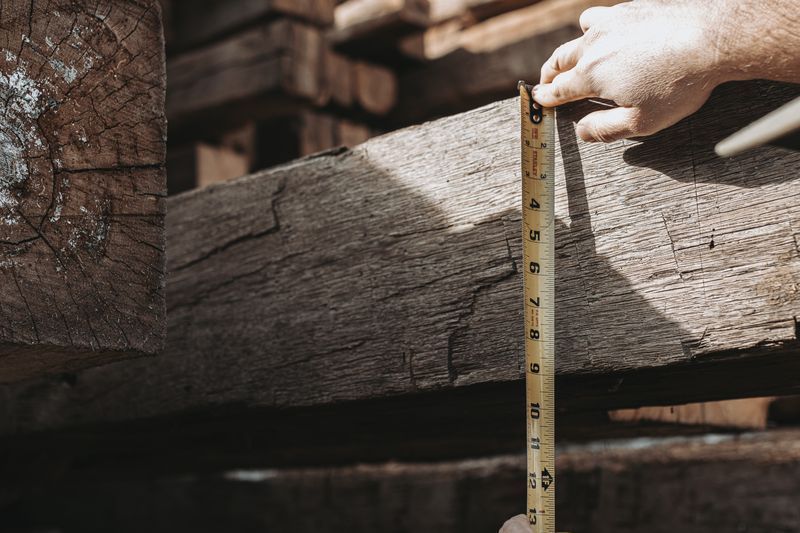

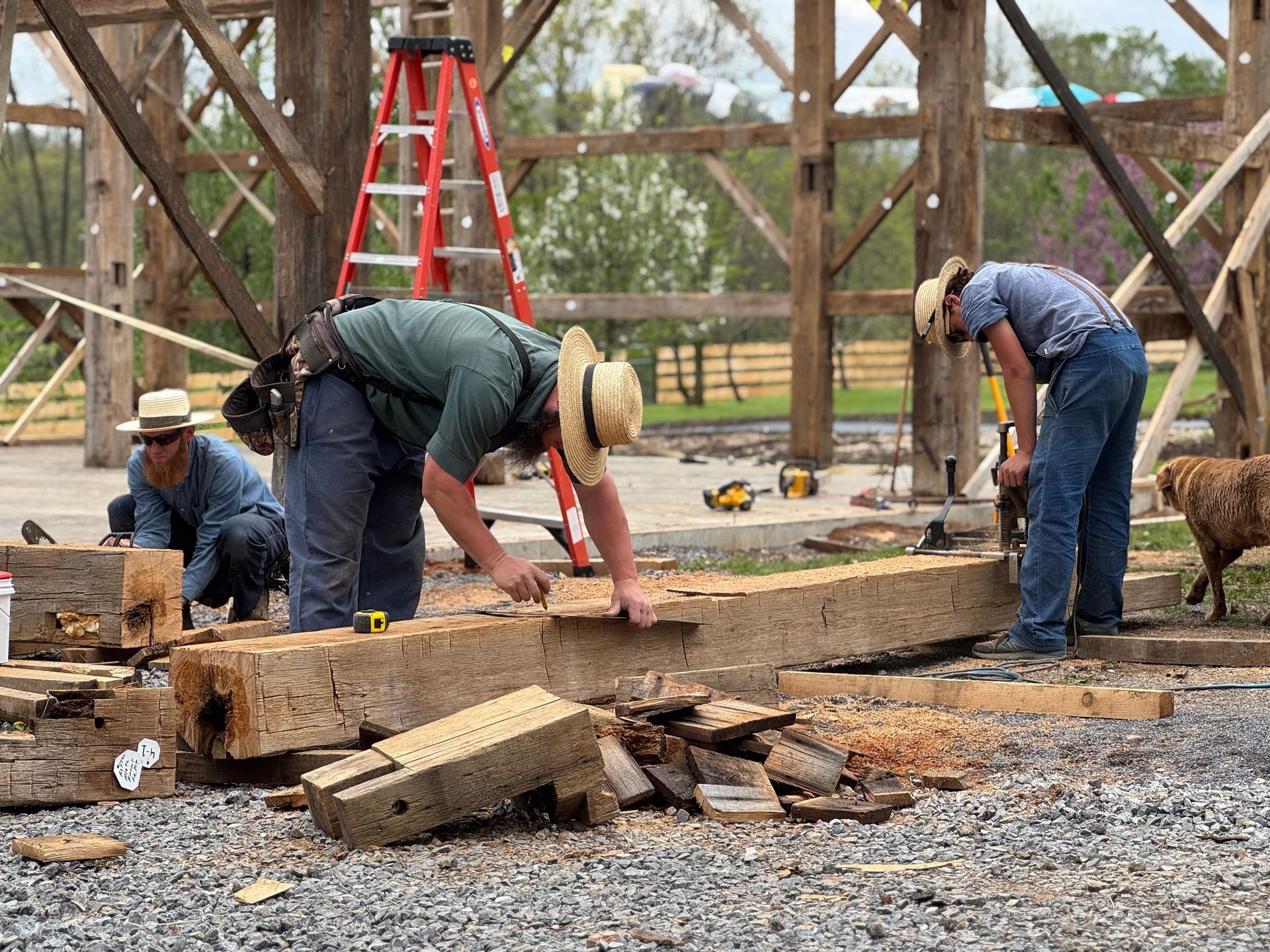

Measuring a wooden beam for barn frame architectural planning.

Last updated: November 2026


Barn frame architectural planning starts with the frame, not the floor plan. You measure the frame, learn what it can carry, then design the rooms, systems, and site around it. Architects and engineers who have worked with old timber do this best, because a historic frame sets the proportions and limits for everything that follows.


Designing around a historic barn frame is about blending its history with how you want to live or work today. Whether you’re planning a home, a business space, or an event venue, here is how the process goes.


What does barn frame architectural planning involve?


It means designing a new building around a historic timber frame. The frame gives you the structure and the volume. The architect and engineer design the foundation, enclosure, systems, and layout so the frame stays intact and the building meets code.


How Do You Get to Know Your Barn Frame?

Every old frame has its own dimensions and story. Learn them before you draw anything.


Measure the frame

Historic frames don’t follow today’s standard sizes. These measurements set the “bones” of your design:

  • Bay spacing. The distance between bents, the main cross-frames.
  • Width and length. The overall footprint.
  • Height. Eave height and ridge height.
  • Roof slope and style.
  • Timber sizes. Post, beam, and brace dimensions.


The best designs work with these proportions instead of fighting them. A good seller will give you drawings or measurements. Many architects also use 3D scans or CAD models to plan with.


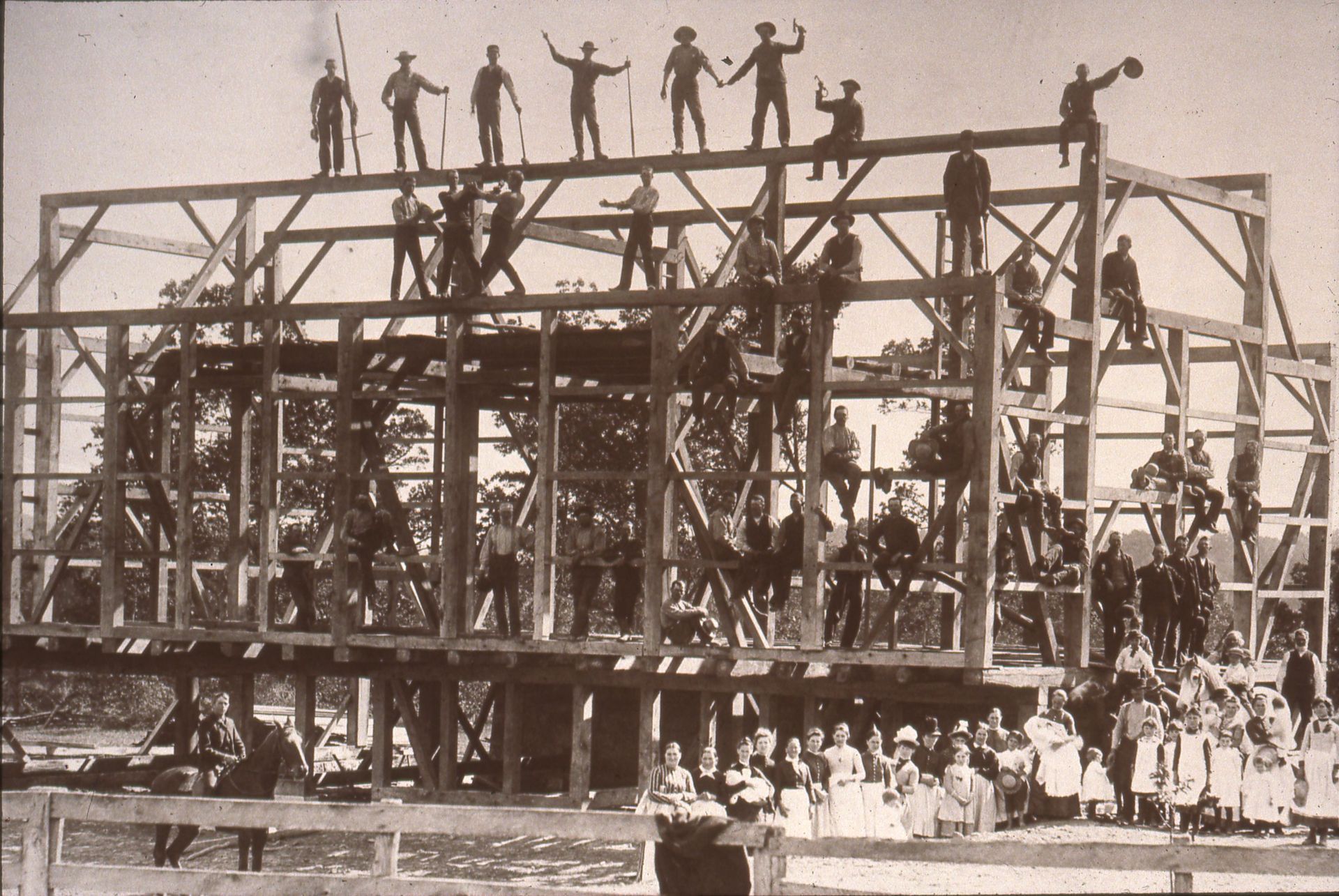

Understand the frame type

Different barn types suggest different layouts.

Barn type What it looks like Layout ideas
English barn Three bays, center aisle, doors on the long side A central great room with side bays for kitchen, bedrooms, or a studio
Bank barn Built into a hillside, two levels A walk-out lower level and a main living level above
Dutch barn Wide, low roof with H-shaped bents A broad, open plan with deep rooms
Gambrel barn Double-sloped roof Loft space for bedrooms or an office

Document the historical details

Note the features worth keeping.

  • Unusual joinery
  • Regional style
  • Builders’ marks, like Roman numerals
  • Signs of how the barn was used


Record them early so they can shine in the finished building.


How Do You Build a Program For The Space?

Architects call the plan for how you’ll use a space a “program.” A good program plays to the frame’s strengths.

  • Open center bays suit living rooms and gathering spaces.
  • Side bays suit bedrooms, kitchens, offices, and utility rooms.
  • High volume with a loft gives you sleeping or work space without losing the open feel.
  • A hillside site makes a walk-out lower level easy.


Keep the original posts and beams visible, and put modern items like kitchens, bathrooms, and closets where they don’t interrupt the frame. Route heating, plumbing, and wiring so they don’t cut into timbers. Architects with barn experience can help you find the balance.

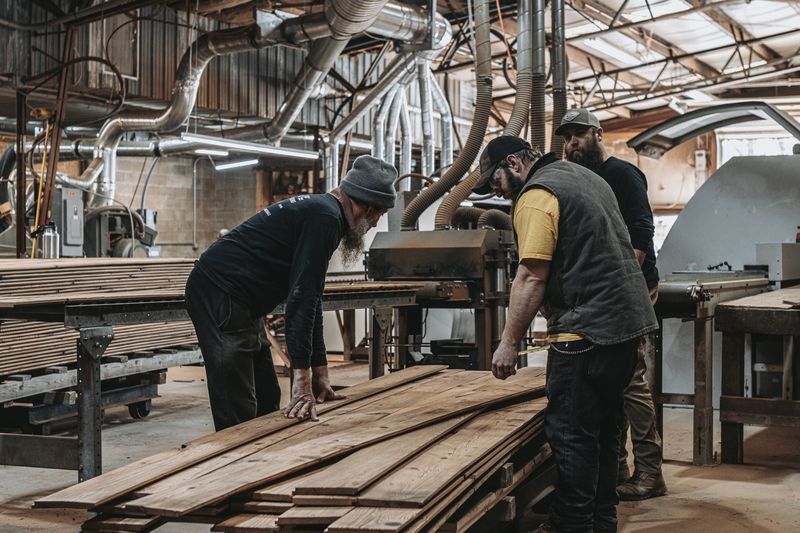

Workers processing wood for barn frame architectural planning.

What Are The Technical Details to Plan For?

Energy efficiency

Historic frames weren’t built to keep people warm. The usual approach is to wrap the frame outside with insulated panels or an exterior wall system, so the timbers stay visible inside. Moisture control matters as much as insulation, so design the wall assembly with an experienced builder or building scientist. Add efficient windows, air sealing, and heating and cooling that fit the volume.


Building codes

A new building around an old frame has to meet current code. Expect to address:

  • Structural design for loads like snow, wind, and seismic forces, depending on your location
  • Fire safety, which may include sprinklers
  • Exits and egress windows
  • Stairs, railings, and accessibility
  • Energy code requirements


An engineer reviews the frame for your project and may call for reinforcement or hidden connections. Experienced architects find solutions that meet code and keep the character. The National Park Service’s guide to preserving historic barns is a useful reference for how barns were built and how to adapt them.


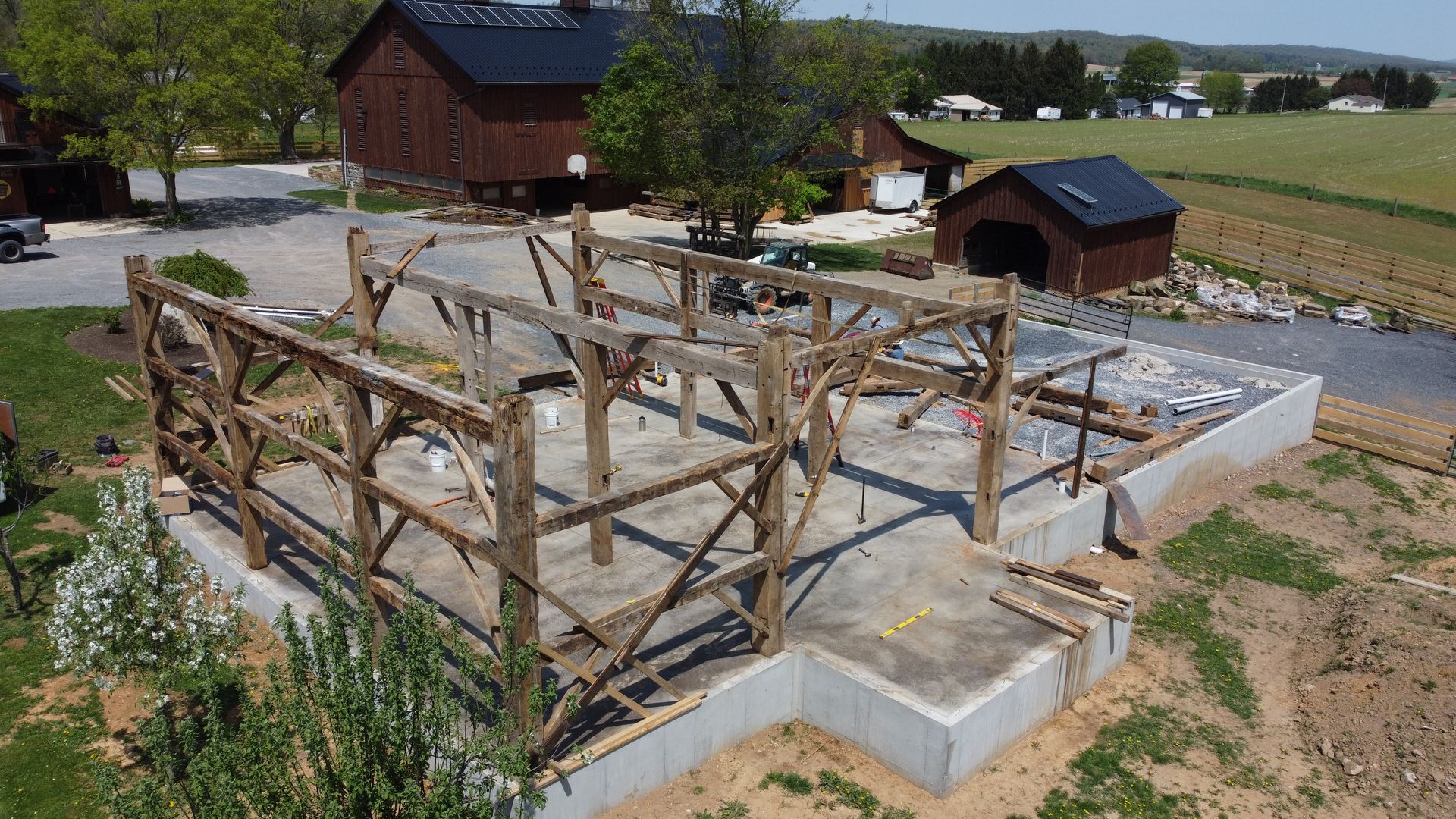

Foundation and site

The frame needs a strong, well-planned base.

  • Design the foundation for the frame’s weight and layout.
  • Choose a foundation type that suits the soil, slope, and frost depth.
  • Place the building well on the site for light, views, and access.
  • Plan drainage so water stays away from the frame.


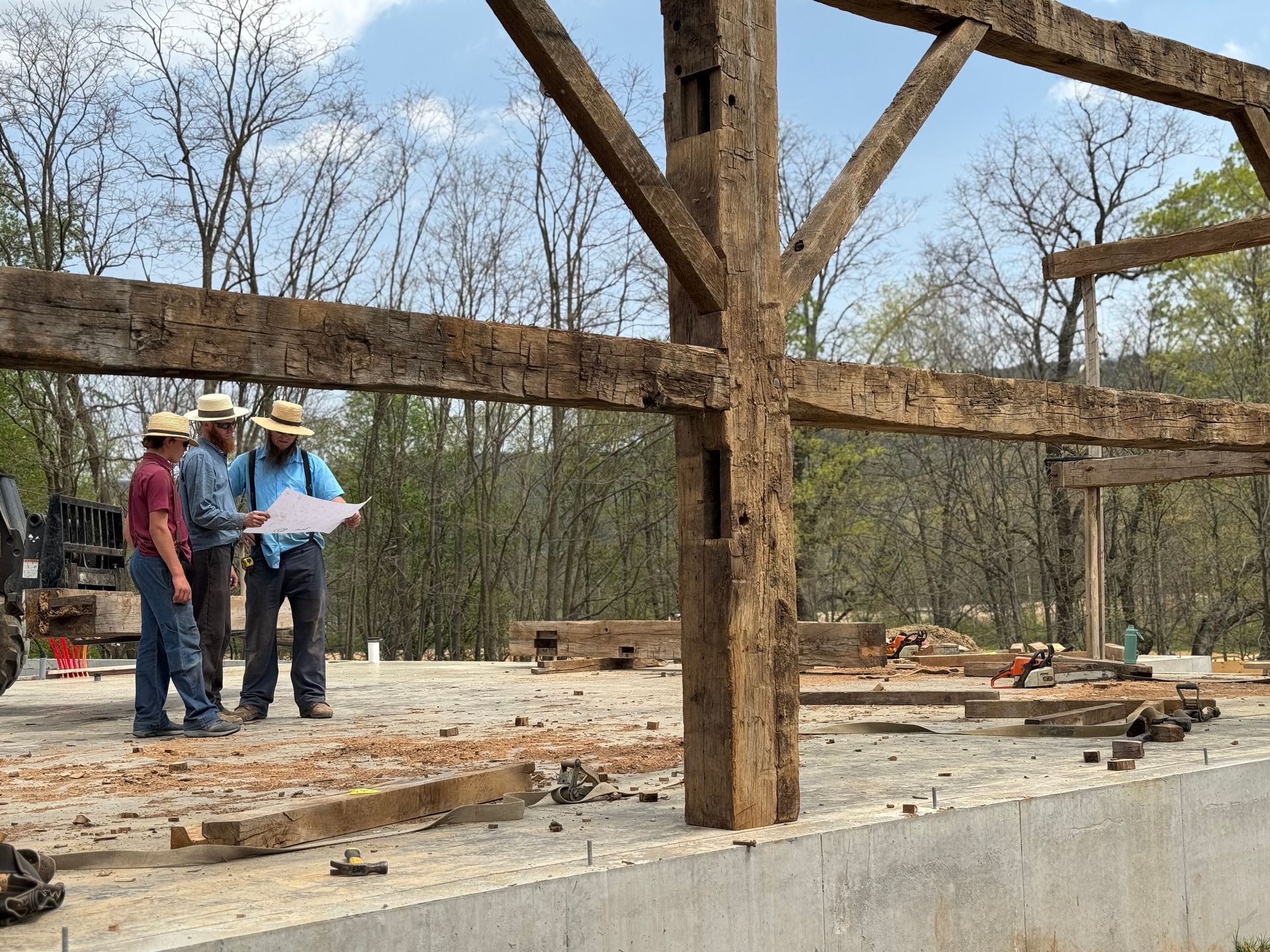

What are the phases of design?

Architects usually work in phases.

Phase What happens
Understand the frame Measure, inspect, and document the frame, and decide what repairs it needs
Schematic design Test layouts, and sketch how modern features and systems fit
Design development Pick materials, refine rooms, and coordinate systems with the engineer
Construction documents Produce detailed drawings and specifications for permits and builders
Permitting and bidding Get approvals and collect bids from builders
Construction Build the foundation, raise the frame, and finish the building

Use 3D models to see the design before you build. They help owners understand the volume and the timber.


What Mistakes Should You Avoid?

  • Designing before choosing the frame. Plans drawn first rarely fit an old frame. Choose the frame, then design.
  • Cutting timbers. Any cut or notch needs an engineer’s review.
  • Planning insulation late. The enclosure shapes the whole design.
  • Ignoring the site. Drainage, access, and foundation can make or break the project.
  • Hiring people without timber experience. Ask for past projects.


What Do We Do at Bay & Bent?

We find historic barn frames across the country, take them down carefully, and repair the timbers at our shop. Then we deliver the frame anywhere in the world, ready to be raised. We share the frame’s measurements and documentation so your architect and engineer can plan around it.


We supply frames for new projects. We don’t design or build the home, and we don’t restore barns on a client’s property. If you’re ready to start planning, see what’s available on our barns page.


Frequently Asked Questions (FAQs)

  • What is barn frame architectural planning?

    It’s the process of designing a new building around a historic timber frame, including layout, structure, systems, code compliance, and site work.

  • Should I design the building or choose the frame first?

    Choose the frame first. Its dimensions set the proportions of the design.

  • Do I need an architect for a barn frame project?

    Usually, yes, along with a structural engineer. Look for people with historic timber experience.

  • Can I change the size of a historic barn frame?

    Within limits. Any change needs engineering review, and it’s easier to choose a frame that fits your plan.

  • How do you insulate a building around a barn frame?

    Many builders insulate outside the frame so the timbers stay exposed inside. The wall needs a moisture control plan.

  • Do barn frame buildings need to meet code?

    Yes. The building, not only the frame, must meet local codes, and an engineer designs for your site’s loads.
